Securing the swivel bearing, top left and right
Securing the swivel bearing, top left and right
NOTE:
Perform the steps on the right and left side.

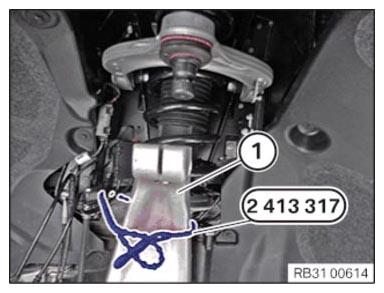

Use the special tool to fasten swivel bearing (1)
2 413 317
to the body in such a way that it does not tip outwards.
Do not allow the swivel bearing (1) to hang down from the brake hose!
Courtesy of BMW OF NORTH AMERICA, INC.
