Removing the tank ventilation line of cylinder bank 1 partially
Removing the tank ventilation line of cylinder bank 1 partially

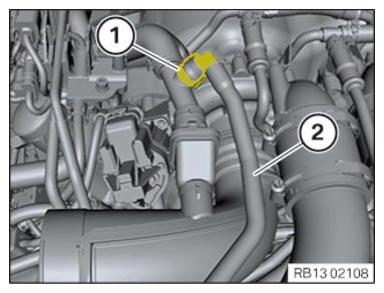

Press the tank vent line (2) on the catch (1) and unlock.
Disconnect the tank vent line (2).
Fold the tank vent line (2) to the side.
Courtesy of BMW OF NORTH AMERICA, INC.
Press the tank vent line (2) on the catch (1) and unlock.
Disconnect the tank vent line (2).
Fold the tank vent line (2) to the side.
Courtesy of BMW OF NORTH AMERICA, INC.
