Removing the side seal on the left and right for the hood

NOTE: Perform the steps on the right and left side.

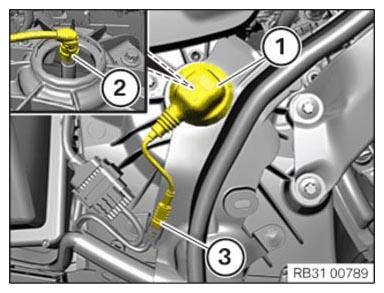

• Release the cap (1).
• Pull out the connector (2) towards the top.
• Unlock plug connection (3) and disconnect.

  Courtesy of BMW OF NORTH AMERICA, INC.

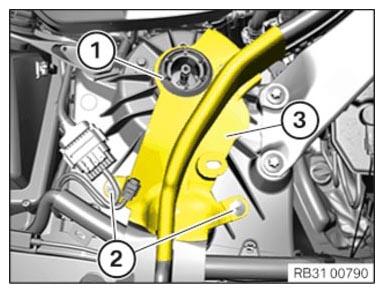

• Pull adapter (1) for the cap upwards and remove it.
• Loosen the rivet (2).
• Removing the side hood seal (3).

Courtesy of BMW OF NORTH AMERICA, INC.
