Removing the retaining bridge

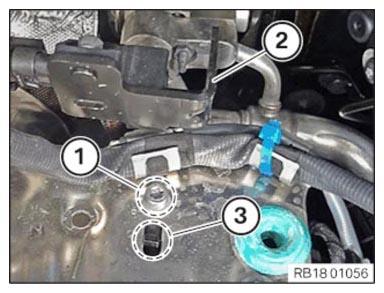

Loosen screw (1).
Feed out the holder of the gasoline particulate filter sensor with sensor (2) from the centering pin (3).

Courtesy of BMW OF NORTH AMERICA, INC.

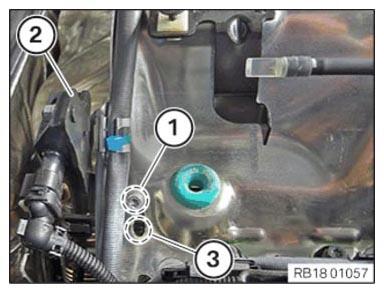

Loosen screw (1).
Feed out the holder of the gasoline particulate filter sensor with sensor (2) from the centering pin (3).

G16412155

Courtesy of BMW OF NORTH AMERICA, INC.

Version with RDE2:

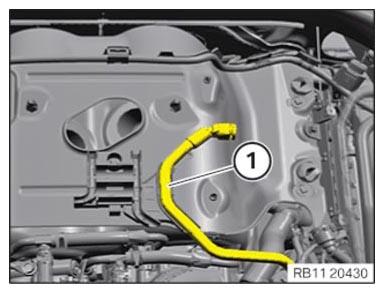

Release the wiring harness mounting (1).

Courtesy of BMW OF NORTH AMERICA, INC.

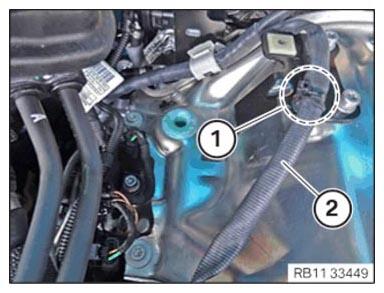

Disengage the hose (1) and place to one side.

Courtesy of BMW OF NORTH AMERICA, INC.

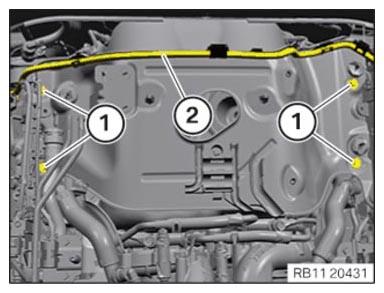

Disengage the line (2) from the cable brackets.
Loosen screws (1).

G16412158

Courtesy of BMW OF NORTH AMERICA, INC.

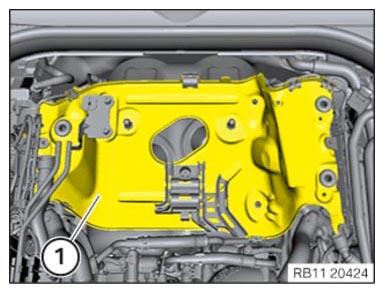

Remove retaining bridge (1) upwards.

G16412159

Courtesy of BMW OF NORTH AMERICA, INC.
