Removing the anti-roll bar
Removing the anti-roll bar
NOTE:
TECHNICAL INFORMATION
Secure component against falling.

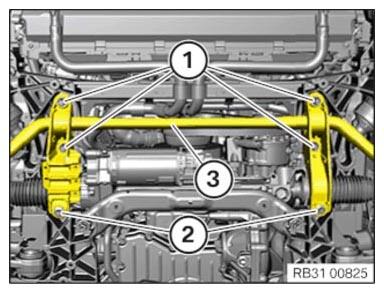

Loosen screws (1) and (2).
Remove the anti-roll bar (3).
