Removing mount for DME master control module support
Removing mount for DME master control module support

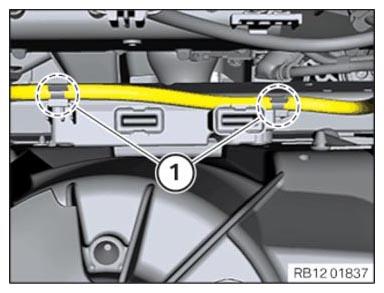

Disengage the positive battery cable on the holders (1).
Courtesy of BMW OF NORTH AMERICA, INC.

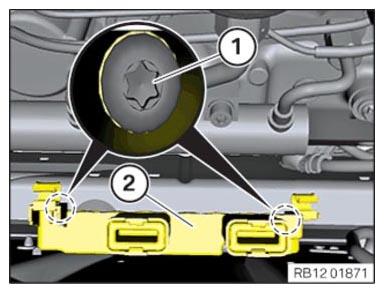

Loosen screws (1).
Remove mount for DME master control module (2).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
