Removing left and right charge air cooler

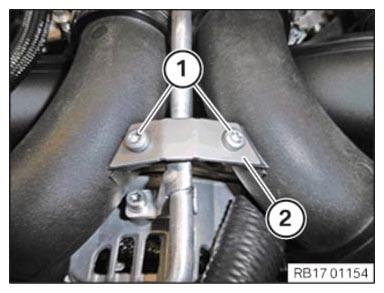

• Loosen screws (1).
• Remove connecting plate (2) of charge air cooler.

  Courtesy of BMW OF NORTH AMERICA, INC.

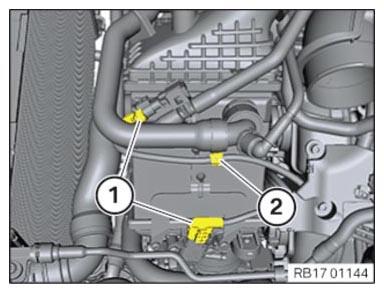

• Unlock and disconnect plug connections (1).
• Open the cable clip (2) and place the cable aside.

  Courtesy of BMW OF NORTH AMERICA, INC.

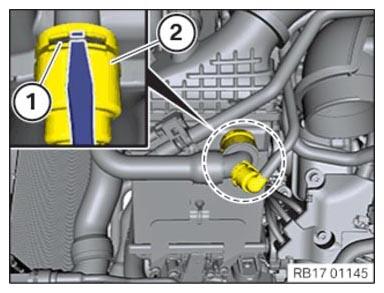

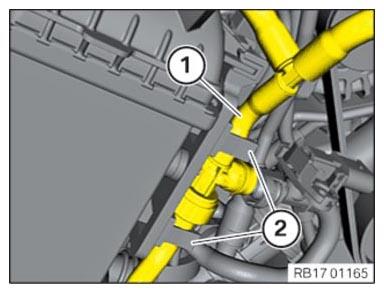

• Unlock retaining clips (1) with a suitable screwdriver.
• Detach the coolant lines (2) and set aside.

  Courtesy of BMW OF NORTH AMERICA, INC.

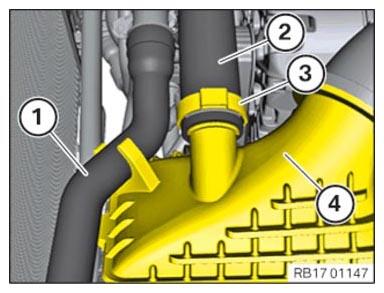

• Thread the hose (1) out of the holder on the charge air cooler (4).
• Loosen hose clamp (3).
• Pull the hose (2) off the stud of the charge air cooler.

  Courtesy of BMW OF NORTH AMERICA, INC.

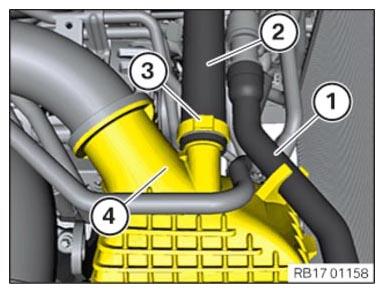

• Thread the hose (1) out of the holder on the charge air cooler (4).
• Loosen hose clamp (3).
• Pull the hose (2) off the stud of the charge air cooler.

  Courtesy of BMW OF NORTH AMERICA, INC.

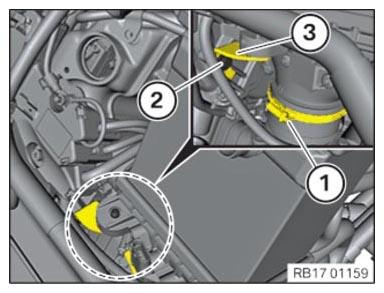

• Loosen hose clamp (1).
• Loosen screw (2).
• Feed out the holder (3) downward.

  Courtesy of BMW OF NORTH AMERICA, INC.

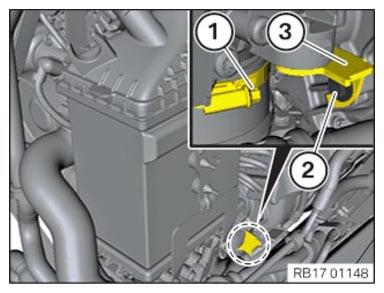

• Unlock the line (1) and disconnect.
• Put the line to one side.
  NOTE: There is risk of breakage.

  Courtesy of BMW OF NORTH AMERICA, INC.

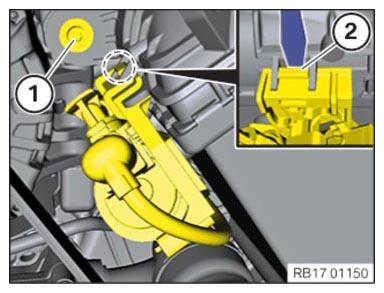

• Loosen screw (1).

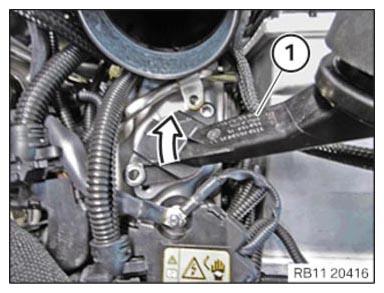

• Unlock the holder (2) in an upward direction using a suitable screwdriver.

  Courtesy of BMW OF NORTH AMERICA, INC.

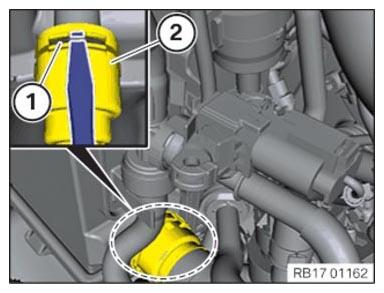

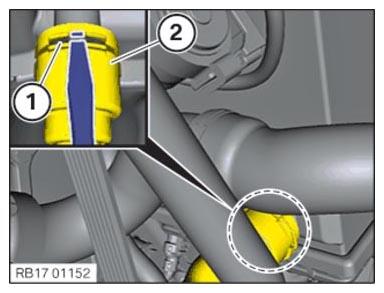

• Unlock retaining clip (1) from hose (2) with a suitable screwdriver.
• Detach hose (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

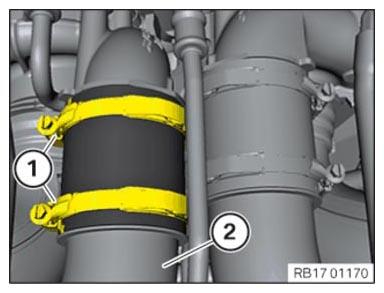

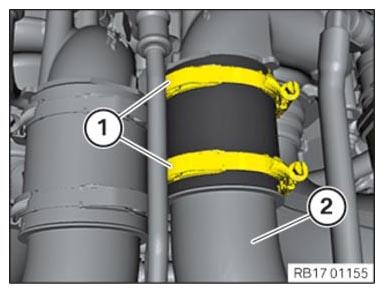

• Release the hose clamps (1).
• Guide out the charge air cooler (2) upwards.

Courtesy of BMW OF NORTH AMERICA, INC.

Removing oil filler neck

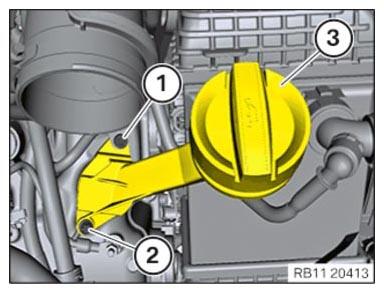

• Release the screw (2) at the oil filler neck (3).
• Release the screw (1) at the oil filler neck (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Turn the oil filler neck (1) by about 15° clockwise.
• Remove the oil filler neck (1).

Courtesy of BMW OF NORTH AMERICA, INC.

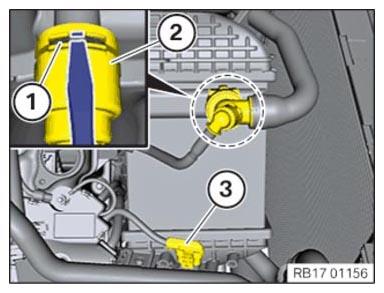

• Unlock retaining clips (1) with a suitable screwdriver.
• Detach the coolant lines (2) and set aside.
• Unlock plug connection (3) and disconnect.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Thread the hose (1) out of the holder on the charge air cooler (4).
• Loosen hose clamp (3).
• Pull the hose (2) off the stud of the charge air cooler.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Thread the hose (1) out of the holder on the charge air cooler (4).
• Loosen hose clamp (3).
• Pull the hose (2) off the stud of the charge air cooler.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen hose clamp (1).
• Loosen screw (2).
• Feed out the holder (3) downward.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock the line (1) and disconnect.
• Put the line to one side.

  There is risk of breakage.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock the retaining clip (1) with suitable screwdriver.
• Remove the coolant line (2) and lay it to one side.

  Courtesy of BMW OF NORTH AMERICA, INC.

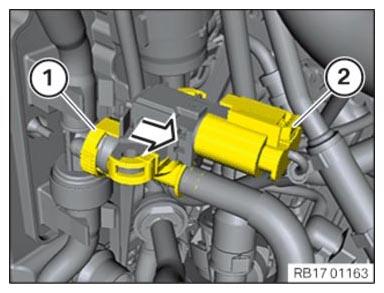

• Unlock the line (1) and disconnect.
• Unlock plug connection (2) and disconnect.
• Put the line to one side.

  There is risk of breakage.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock the holder with a suitable screwdriver at the lug (1) and remove it from the guide in an upward fashion.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Disengage line (1) from the holders (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

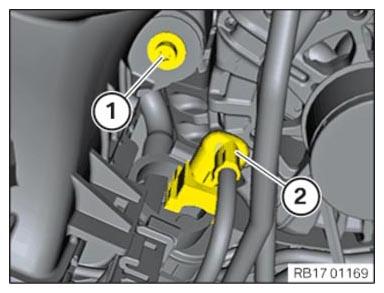

• Loosen screw (1).
• Unlock plug connection (2) and disconnect.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen screws (1).
• Remove connecting plate (2) of charge air cooler.

  Courtesy of BMW OF NORTH AMERICA, INC.

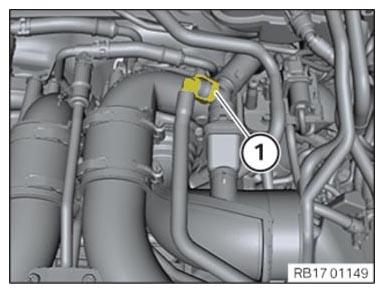

• Loosen hose clamp (1) on charge air cooler (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

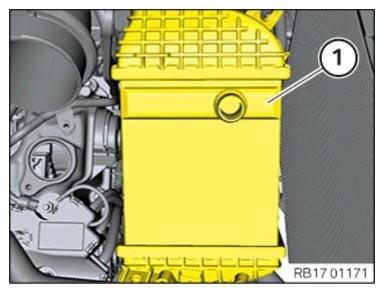

• Guide out the charge air cooler (1) upwards.

Courtesy of BMW OF NORTH AMERICA, INC.
