Removing left and right brake ventilation duct
Removing left and right brake ventilation duct
NOTE:
Perform the steps on the right and left side.

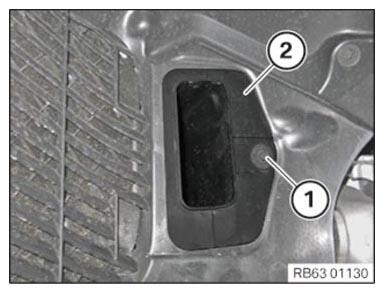

Loosen the screw (1) and guide the brake ventilation duct (2) out of the wheel arch cover.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
