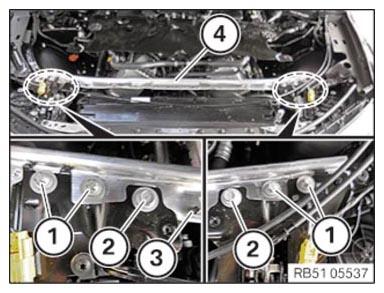

Remove the rear top cross connection
Remove the rear top cross connection
Loosen screws (1).
Loosen screws (2).
Snap out the cable holder (3) in a downwards motion from the cross-connection (4) at the top rear.
Guide out and remove the top rear cross connection (4) to the engine.
Courtesy of BMW OF NORTH AMERICA, INC.
