Remove the rear section of the wheel arch cover on the front left and right

NOTE: Perform the steps on the right and left side.

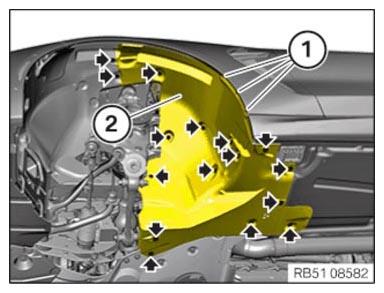

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

• Loosen the expanding rivet (1).
• Remove screws (arrows).
• Guide out and remove rear section (2) of the front wheel arch cover.

Courtesy of BMW OF NORTH AMERICA, INC.
