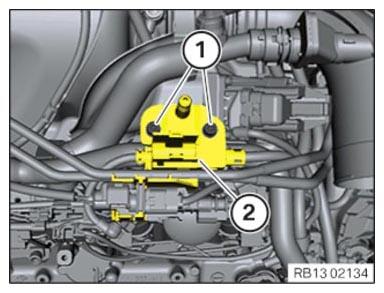

Remove the holder with the vehicle wiring harness for the sensor system of cylinder bank 1
Remove the holder with the vehicle wiring harness for the sensor system of cylinder bank 1
Loosen screws (1).
Place aside the holder (2) with the vehicle wiring harness for the sensor system.
