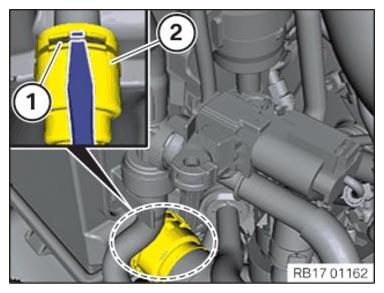

Remove the coolant line from the coolant pump to the charge air cooler on the right

• Unlock the retaining clip (1) with suitable screwdriver.
• Remove the coolant line (2) and lay it to one side.

Courtesy of BMW OF NORTH AMERICA, INC.
