Remove the clean air pipe of cylinder bank 1

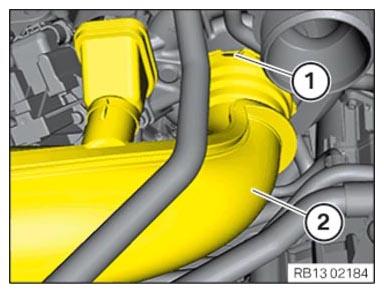

• Unlock the retaining clip (1) upwards using a suitable screwdriver.
• Remove clean air pipe of bank 1 (2).

Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock the retaining clip (1) upwards using a suitable screwdriver.
• Remove clean air pipe of bank 1 (2).

Courtesy of BMW OF NORTH AMERICA, INC.
