Remove tank cover on left and right
NOTE:
Description is for left component only. Procedure on the right side is identical.
NOTE:
Perform the steps on the right and left side.

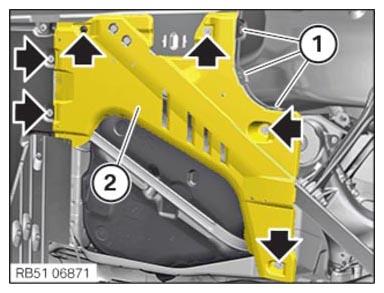

- Loosen screws (1).
- Unscrew all bolts and nuts (arrows).
- Thread out the tank cover (2) and remove.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
