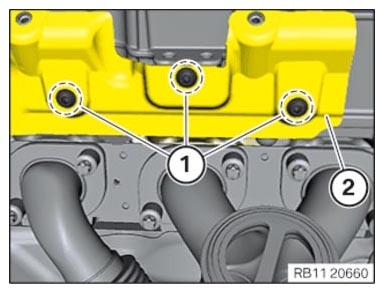

Remove heat shield of cylinder head cover of cylinders 5 to 8
Remove heat shield of cylinder head cover of cylinders 5 to 8
Loosen screws (1).
Remove the heat shield (2).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
