Remove front cross connection
Remove front cross connection

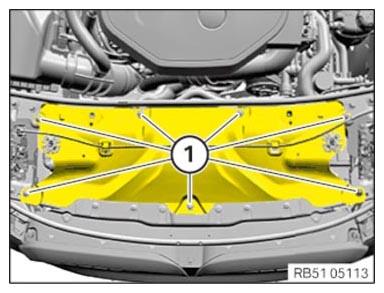

Loosen screws (1).
Courtesy of BMW OF NORTH AMERICA, INC.

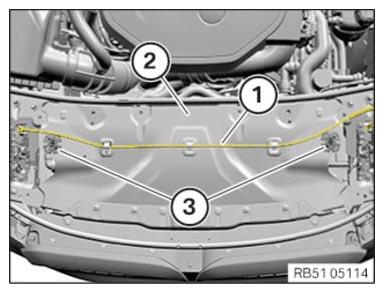

Detach the Bowden cable (1).
Feed out the cross connection (2) with the holders (3) and remove.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
