Releasing the transmission wiring harness partially
Releasing the transmission wiring harness partially

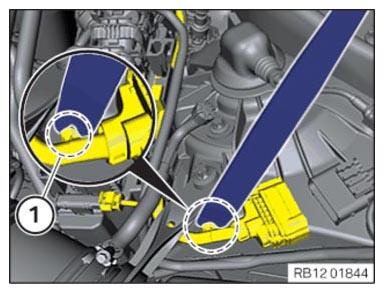

Unlock and disconnect plug connections (1).
Courtesy of BMW OF NORTH AMERICA, INC.

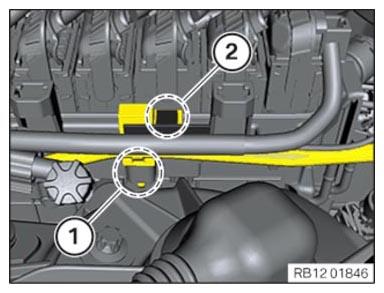

Disengage clip of the wiring harness (1) with conventional expanding rivet jack.
Courtesy of BMW OF NORTH AMERICA, INC.
Disengage the engine wiring harness on the holder (2).

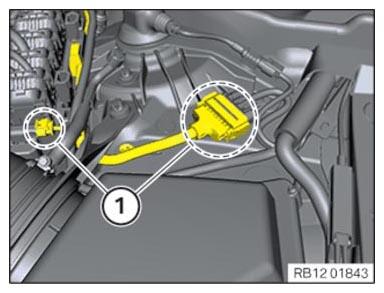

Unlock transmission wiring harness in area (1) and disengage upwards.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
