Releasing front prop shaft from front differential
Releasing front prop shaft from front differential

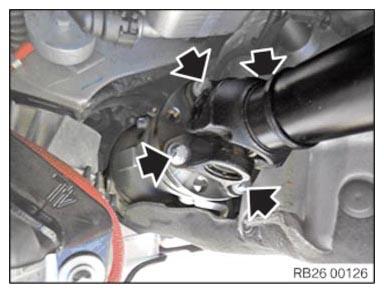

Remove screws (arrows).
Release the front prop shaft from the front differential.
Tie up the front prop shaft.
