Preparing the mobile lifting table for work on the engine (removing the engine with transmission)

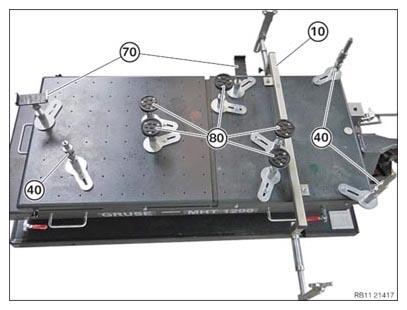

Mobile lifting table

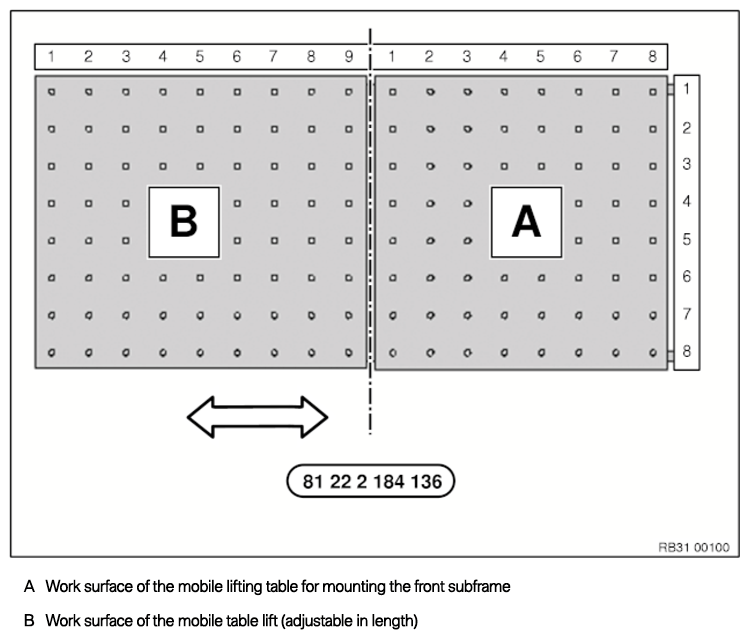

- Work surface A:
- Position mounts 40 at coordinates 7/1 and 7/8. A slight protrusion towards the lifting table is permissible.
- Position mounts 10 at coordinates - 4/1 and 5/8 .
- Position mounts 80 at coordinates 2/3 and 3/5 and 3/8 .
- Position mount 70 at coordinates 3/1 .
- Work surface B:
- Position mounts 80 at coordinates 7/4 and 7/5 .
- Position mount 70 at coordinates 1/3 .
- Position mount 40 at coordinates 3/7 .
Mortal hazard!
- Observe Owner's Manual for vehicle hoist.
- Do not exceed the approved load carrying capacity and weight distribution of the vehicle lift.
- Depending on the load situation of the vehicle: Perform weight compensation, particularly during removal of heavy components, e.g. engine.
- Make sure the vehicle lift complies with the relevant statutory or country-specific accident prevention provision and is serviced according to the regulations.
- Observe the instructions of the repair instructions when positioning the swivel arms.

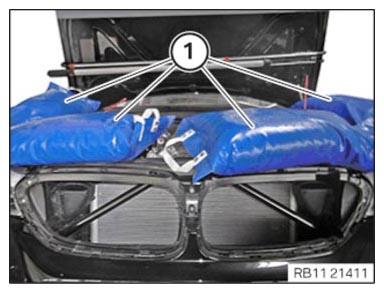

- Provide the necessary weight compensation using sandbags (1).
- Position the lifting table under the front subframe.

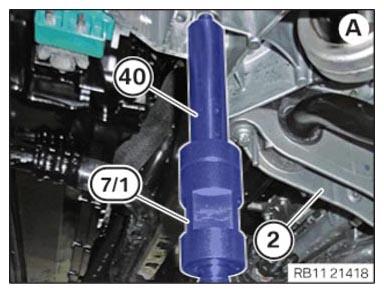

- Ensure that the recess for the front subframe at the front left is precisely over mount 40 with coordinates 7/1
of work surface A
.
The mounts 40 must be positioned under the front subframe in the vicinity of the bearing for the anti-roll bar at the front left (2).
All mounts must be aligned correctly and positioned under the respective mounting points.

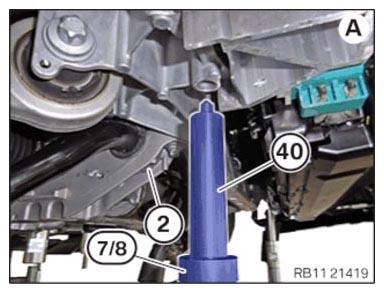

- Ensure that the recess for the front subframe at the front left is precisely over mount 40
with coordinates 7/8
of work surface A
.
The mounts 40 must be positioned under the front subframe in the vicinity of the bearing for the anti-roll bar at the front right (2).
All mounts must be aligned correctly and positioned under the respective mounting points.

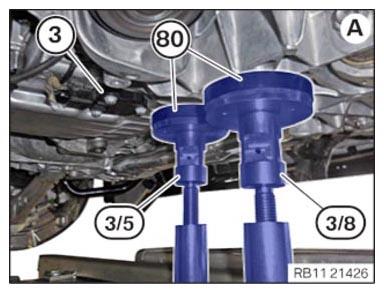

- Ensure that the lower engine oil pan is precisely over mount 80
with coordinates 3/5
of work surface A
.
The mounts 80 must be positioned under the lower engine oil pan in the vicinity of the oil-level sensor (2).
All mounts must be aligned correctly and positioned under the respective mounting points.
- Ensure that the front subframe is over mount 80 with coordinates 3/8
of work surface A
.
The mounts 80 must be positioned under the lower engine oil pan in the vicinity of the oil-level sensor (2).
All mounts must be aligned correctly and positioned under the respective mounting points.

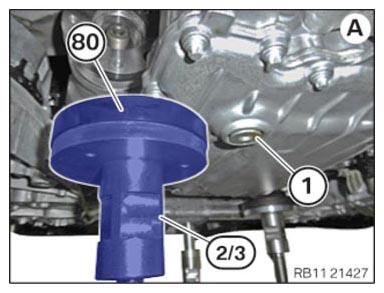

- Ensure that the lower engine oil pan is over mount 80
with coordinates 2/3
of work surface A
.
The mount 80 must be positioned under the lower engine oil pan in the vicinity of the oil drain plug (1).
All mounts must be aligned correctly and positioned under the respective mounting points.
- Ensure that the lower engine oil pan is over mount 80
with coordinates 2/3
of work surface A
.
All mounts must be aligned correctly and positioned under the respective mounting points.

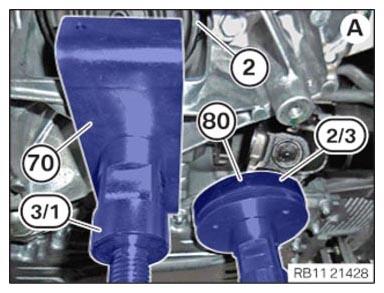

- Ensure that the front subframe is over mount 70 with coordinates 3/1
of work surface A
.
The mount 70 must be positioned under the front subframe in the vicinity of the left engine mount (2).
All mounts must be aligned correctly and positioned under the respective mounting points.

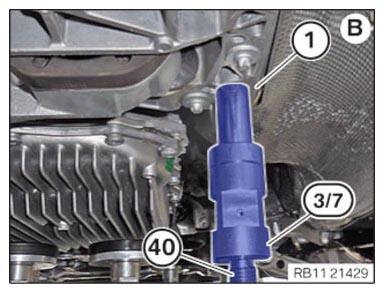

- Ensure that the transmission cross member is over mount 40
with coordinates 3/7
of work surface B
.
All mounts must be aligned correctly and positioned under the respective mounting points.

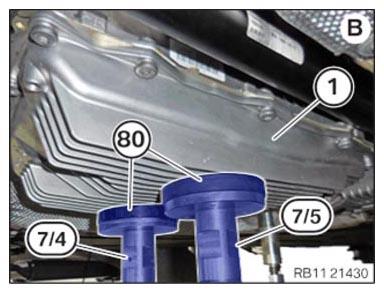

- Ensure that the transmission oil pan (1) is over mounts 80
with coordinates 7/4
and 7/5
of work surface B
.
All mounts must be aligned correctly and positioned under the respective mounting points.

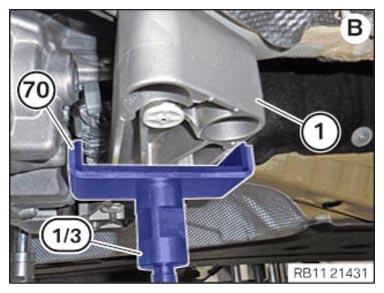

- Ensure that the transmission cross member (1) is over mount 70
with coordinates 1/3
of work surface B
.
All mounts must be aligned correctly and positioned under the respective mounting points.
- Abut all mounts with threads to the mounts by hand.
Carefully pump the lifting table up if necessary.
- Screw the mounts to the lifting table.
