Prepare the mobile table lift

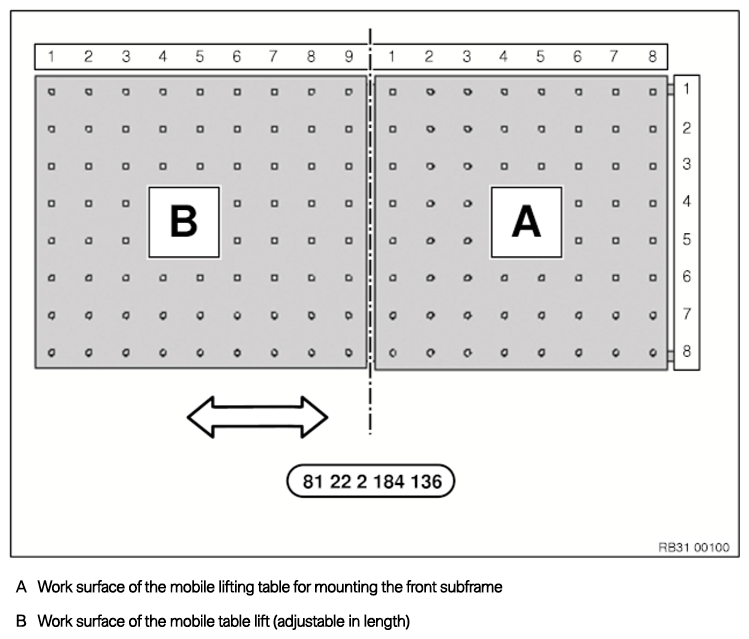

Mobile lifting table

Courtesy of BMW OF NORTH AMERICA, INC.

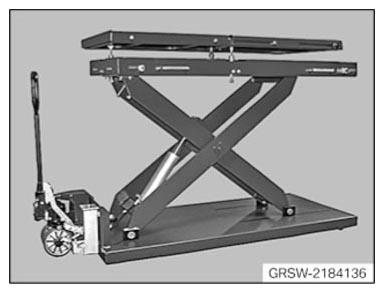

• Stage the mobile table lift 2 184 136  .

  Courtesy of BMW OF NORTH AMERICA, INC.

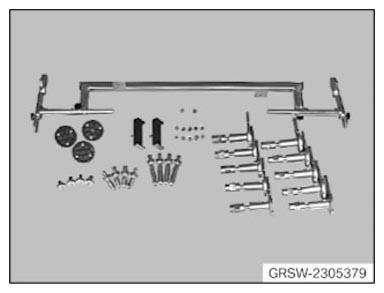

• Place the mounting element from the set of special tools 2 305 379  ready.

  Courtesy of BMW OF NORTH AMERICA, INC.

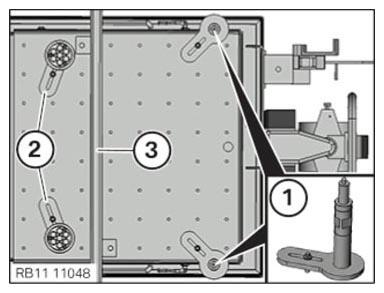

• Position mounting elements (1) with mounts (50) on the work surface (A) of the mobile lifting table for the front subframe at coordinates 7/1  and 7/8  .
• Position mounting elements (2) with mounts (80) on the work surface (A) of the mobile lifting table for the front subframe at coordinates 2/2  and 2/7  .
• Position the swivel bearing stand (3) on the work surface (A) of mobile lifting table at the coordinates 3/1  and 4/8  .

  Courtesy of BMW OF NORTH AMERICA, INC.

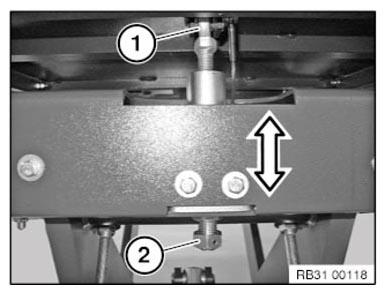

• Adjust inclination of the lifting table (1) using the adjustment screw (2) until the bubble level of the lifting table (1) indicates the correct position.

Courtesy of BMW OF NORTH AMERICA, INC.
