Partially removing the coolant lines and refrigerant lines

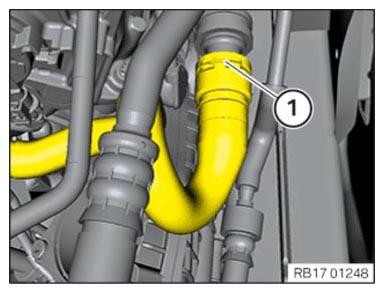

• Unlock and disconnect coolant lines (1).
• Place coolant lines (1) to one side.

  Courtesy of BMW OF NORTH AMERICA, INC.

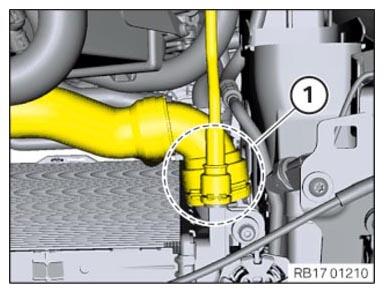

• Unlock the coolant line on the retaining clip (1) and disconnect it.
• Guide out the coolant line.

Courtesy of BMW OF NORTH AMERICA, INC.

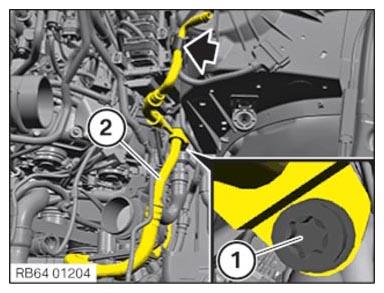

• Loosen screw (1).
• Guide out the intake line (2) entirely upwards and remove.

  Courtesy of BMW OF NORTH AMERICA, INC.

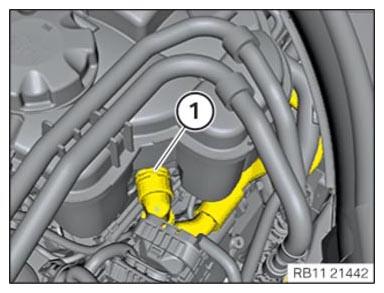

• Unlock and disconnect the coolant return hose (1) on the expansion tank.

Courtesy of BMW OF NORTH AMERICA, INC.
