Partially removing the Lambda oxygen sensor for the cylinders 5 to 8
Partially removing the Lambda oxygen sensor for the cylinders 5 to 8

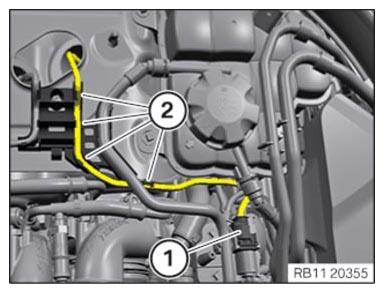

Unlatch the plug connection (1) upwards and disconnect.
Unlatch the cable from the detents (2).
Courtesy of BMW OF NORTH AMERICA, INC.

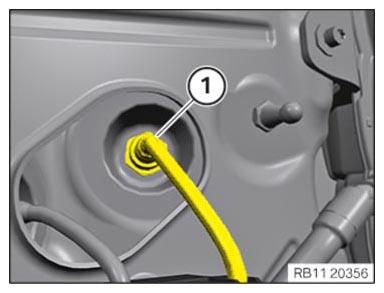

Feed the cable (1) of Lambda oxygen sensor through the holder of coolant expansion tank.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
