Partial installation of engine oil cooler
Partial installation of engine oil cooler

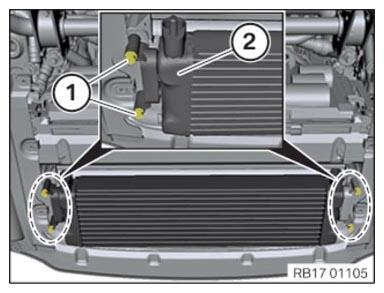

Secure the engine oil cooler (2) from falling down.
Loosen screws (1).
Courtesy of BMW OF NORTH AMERICA, INC.

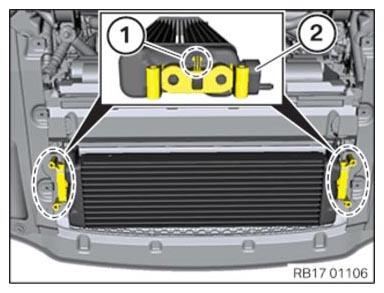

Detach the engine oil cooler (2) downward from the snap-in lugs (1) on the crash pad.
Remove the engine oil cooler (2) with the crash pads.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
