Only if work is performed on the removed engine
WARNING:
Hot fluids.
Risk of scalding!
Risk of scalding!
- Conduct all work in the vehicle wearing appropriate personal protective equipment only.
NOTE:
TECHNICAL INFORMATION
Make sure the vehicle is operating temperature for engine oil service (engine oil temperature > 70°C).
Make sure the vehicle is operating temperature for engine oil service (engine oil temperature > 70°C).

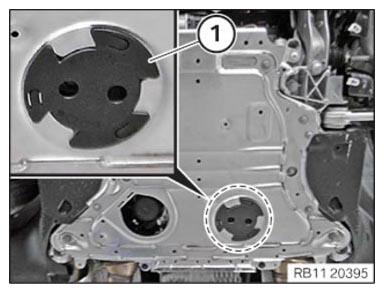

- Pull cover of the oil drain screw (1) downwards and turn anti-clockwise.

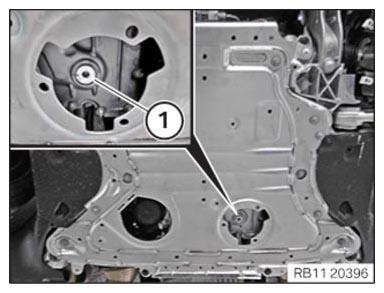

- Release oil drain plug (1).
- Remove oil drain screw (1) with sealing ring.NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids.
Observe country-specific waste disposal regulations. - Catch the motor oil with a suitable collecting vessel.
- Screw in the oil drain plug hand-tight.
