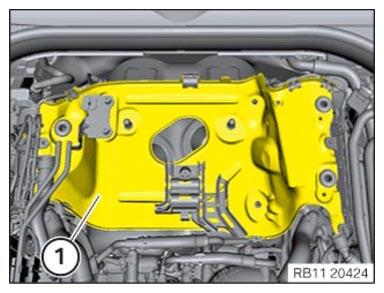

Installing the support bridge

TIGHTENING TORQUE SPECIFICATION

Expansion tank holder
M6x16 screw	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Version with RDE2:

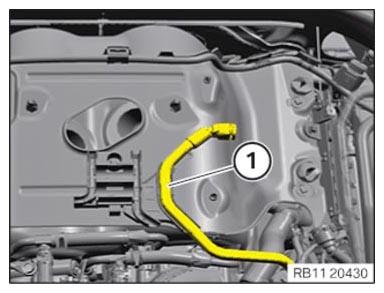

Secure the wiring harness mounting (1).

Courtesy of BMW OF NORTH AMERICA, INC.

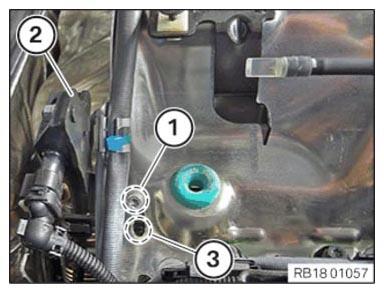

Position the holder of the gasoline particulate filter with the sensor (2) with the centering pin (3).
Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATION

Holder of gasoline particulate filter to holder for expansion tank
M6x16	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

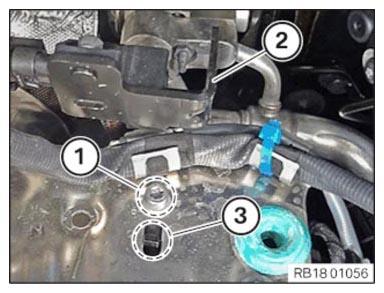

Position the holder of the gasoline particulate filter with the sensor (2) with the centering pin (3).
Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATION

Holder of gasoline particulate filter to holder for expansion tank
M6x16	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
