Installing the side seal on the left and right for the hood

NOTE: Perform the steps on the right and left side.

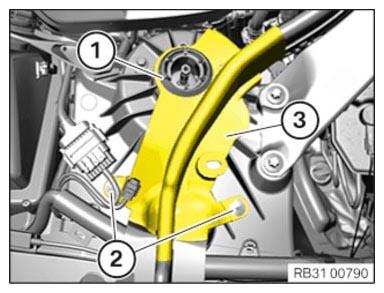

• Positioning the side hood seal (3).
• Secure the rivet (2).
• Installing adapter (1) for the cap.

  Courtesy of BMW OF NORTH AMERICA, INC.

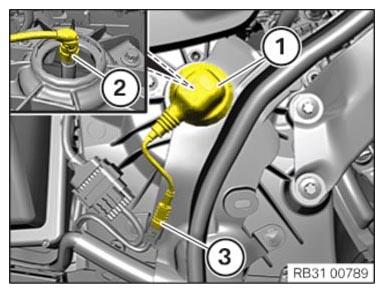

• Connect connectors (3) and lock.
• Connect connector (2).
  NOTE: The connector (2) must noticeably snap into place.
• Install cap (1).

Courtesy of BMW OF NORTH AMERICA, INC.
