Installing the heat shields

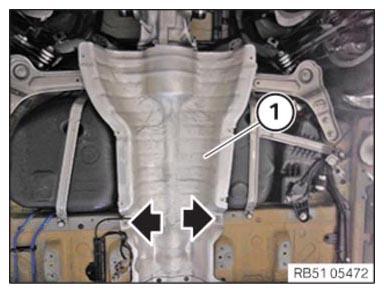

- Install heat shield (1).

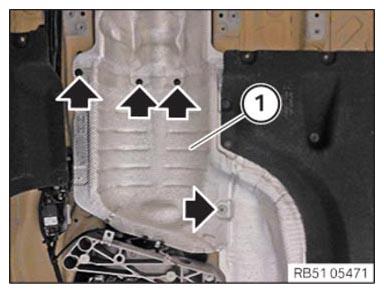

- Tighten nuts and screws (arrows).
TIGHTENING TORQUE SPECIFICATION
| Heat shield to underbody | ||
|---|---|---|
| Screws and nuts | Tightening torque | 3 Nm |

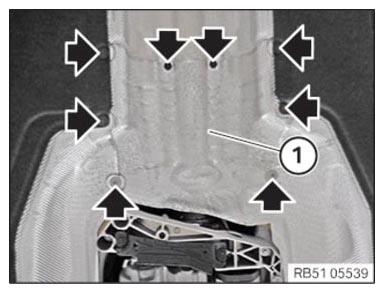

- Install heat shield (1).

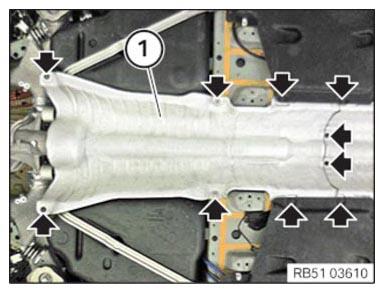

- Tighten nuts and screws (arrows).
TIGHTENING TORQUE SPECIFICATION
| Heat shield to underbody | ||
|---|---|---|
| Screws and nuts | Tightening torque | 3 Nm |
