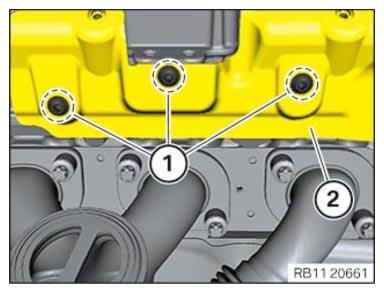

Installing the heat shield of the cylinder head cover for cylinders 1 to 4

• Position the heat shield (2).
• Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATION

Heat protection plate
M6x12 screw Replace screw.	tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
