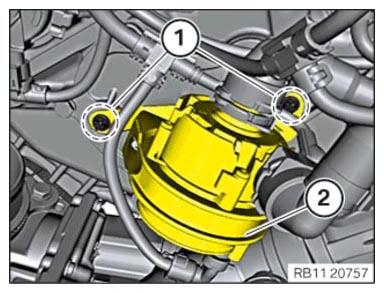

Installing the electric coolant pump with the holder (cylinder head cover mounted)

• Position electric coolant pump (2) with the holder.
• Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATION

Holder of electric coolant pump
M6x16 screw	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
