Installing the charge air cooler on the left and right

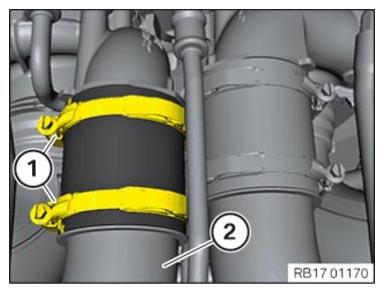

• Feed in the charge air cooler (2) at the bottom and position.
• Replace hose with clamps (2).

  Parts:  Hose, clamps

• Tighten hose clamp (1).
  TIGHTENING TORQUE SPECIFICATION



  hose
  hose	Tightening torque	3.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

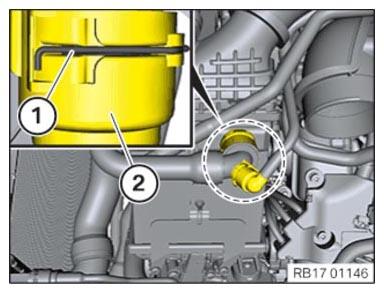

• Connect hose (2).

  Retaining clip (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Engage the holder (2) on the charge air cooler.
• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATION



  Charge air cooler top
  M6x30 screw	Tightening torque	10 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

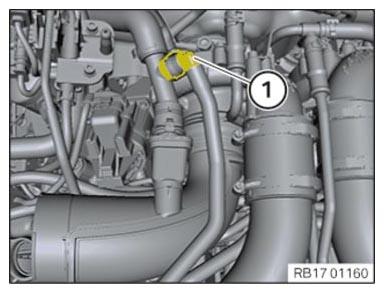

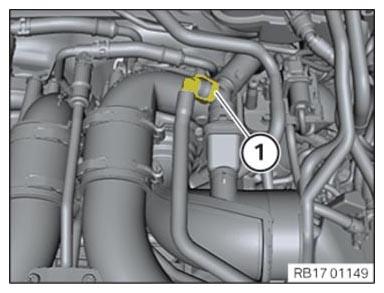

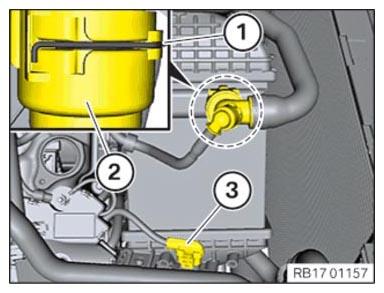

• Connect the line (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

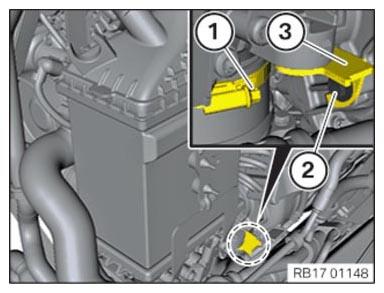

• Position holder (3).
• Tighten down screw (2).
  TIGHTENING TORQUE SPECIFICATION



  Charge air cooler bottom
  M6x18 screw	Tightening torque	10 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

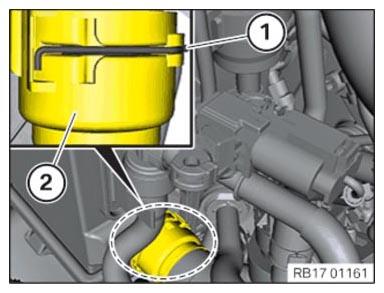

• Replace the hose.

  Parts:  Hose

• Tighten the hose clamp (1).
  TIGHTENING TORQUE SPECIFICATION



  hose
  hose	Tightening torque	3.5 Nm

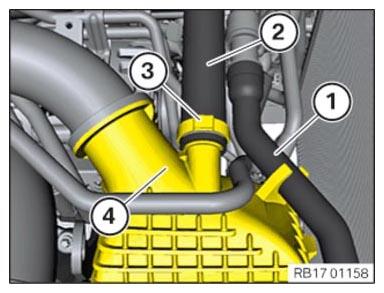

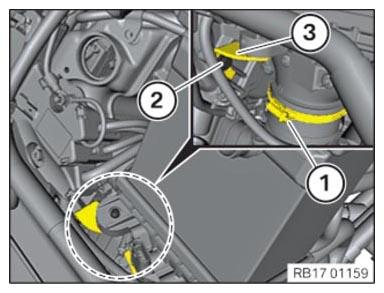

• Slide the hose (2) onto the stud of the charge air cooler.
• Replace hose clamp with hose.

  Parts:  Hose clamps and hose

• Tighten the hose clamp (3).
• Thread in the hose (1) in the holder on the charge air cooler (4).

  Courtesy of BMW OF NORTH AMERICA, INC.

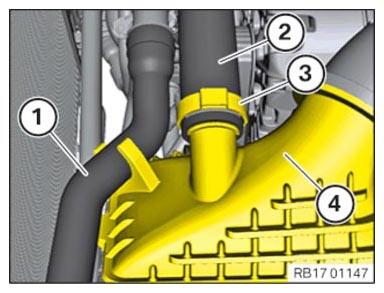

• Slide the hose (2) onto the stud of the charge air cooler.
• Replace hose clamp with hose.

  Parts:  Hose clamps and hose

• Tighten the hose clamp (3).
• Thread in the hose (1) in the holder on the charge air cooler (4).

  Courtesy of BMW OF NORTH AMERICA, INC.

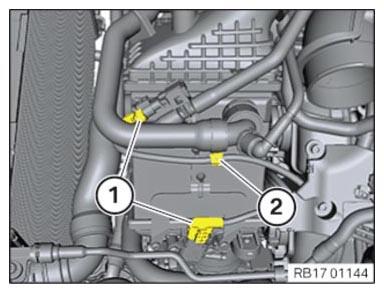

• Attach the coolant lines (2).
• Retaining clip (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the cable in the cable bracket (2) and lock.
• Connect connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

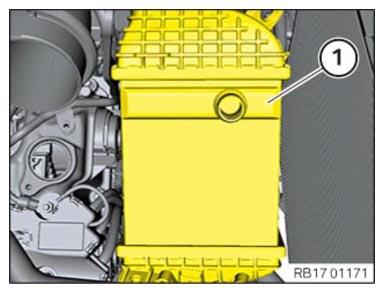

• Feed in the charge air cooler (1) at the bottom and position.

  Courtesy of BMW OF NORTH AMERICA, INC.

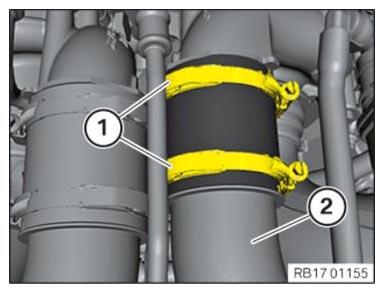

• Replace the hose and clamps (1).

  Parts:  Hose, clamps

• Tighten the hose clamps (1) on the charge air cooler (2).
  TIGHTENING TORQUE SPECIFICATION



  hose
  hose	Tightening torque	3.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

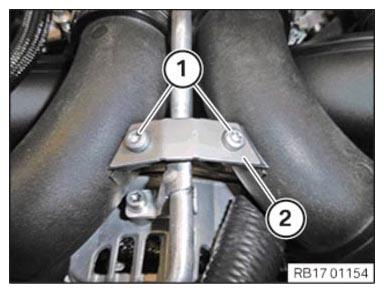

• Position the connecting plate of the charge air cooler (2).
• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATION



  Connecting plate of charge air cooler
  Screw	Tightening torque	6.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connectors (2) and lock.
• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATION



  Charge air cooler top
  M6x30 screw	Tightening torque	10 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

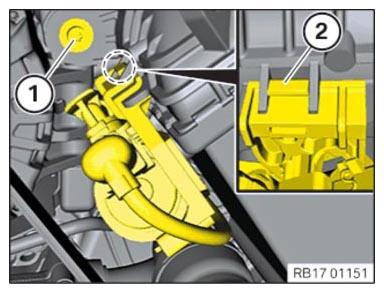

• Snap line (1) into holder (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

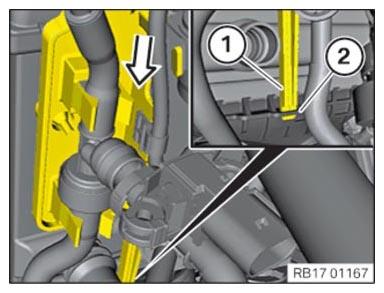

• Position the centering pin on holder (1) downwards in lug (2) on the charge air cooler.

  Courtesy of BMW OF NORTH AMERICA, INC.

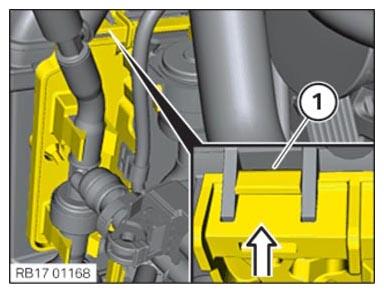

• Engage the holder (1) on the charge air cooler.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the line.

  Risk of breakage.

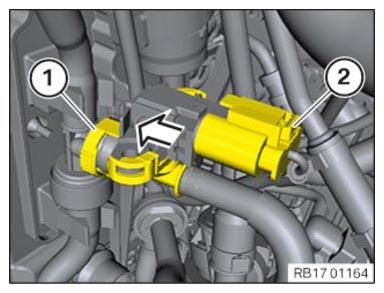

• Connect connectors (2) and lock.
• Connect the line (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect hose (2).

  Retaining clip (1) must snap in audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect the line (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position holder (3).
• Tighten down screw (2).
  TIGHTENING TORQUE SPECIFICATION



  Charge air cooler bottom
  M6x18 screw	Tightening torque	10 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

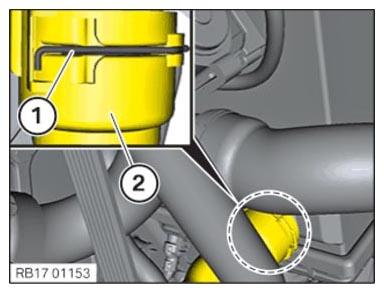

• Replace the hose.

  Parts:  Hose

• Tighten the hose clamp (1).
  TIGHTENING TORQUE SPECIFICATION



  hose
  hose	Tightening torque	3.5 Nm

• Slide the hose (2) onto the stud of the charge air cooler.
• Replace hose clamp with hose.

  Parts:  Hose clamps and hose

• Tighten the hose clamp (3).
• Thread in the hose (1) in the holder on the charge air cooler (4).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Slide the hose (2) onto the stud of the charge air cooler.
• Replace hose clamp with hose.

  Parts:  Hose clamps and hose

• Tighten the hose clamp (3).
• Thread in the hose (1) in the holder on the charge air cooler (4).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Attach the coolant lines (2).
• Retaining clip (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Installing oil filler neck

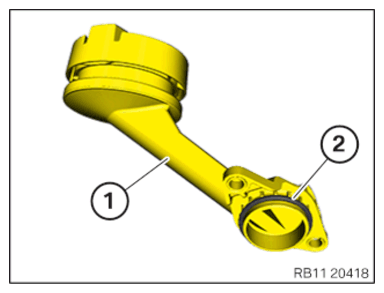

• Replace the sealing ring (2) on the oil filler neck (1).

  Parts:  Sealing ring

• Coat the sealing ring (2) with the recommended engine oil.
  ENGINE OIL DESCRIPTION



  Technically suitable engine oils for BMW Group engines

  Courtesy of BMW OF NORTH AMERICA, INC.

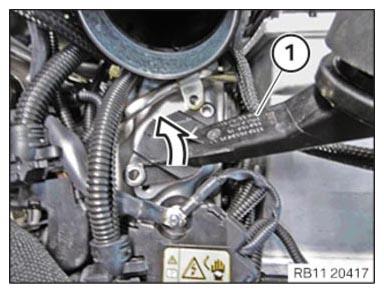

• Position oil filler neck (1).
• Turn oil filler neck (1) about 15° counterclockwise.

  Courtesy of BMW OF NORTH AMERICA, INC.

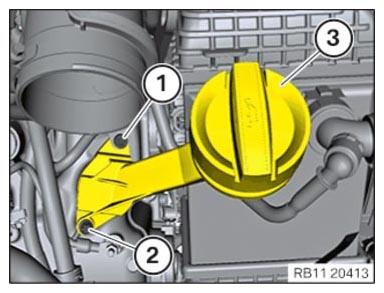

• Tighten screw (2) on the oil filler neck (3).
  TIGHTENING TORQUE SPECIFICATION



  Oil filler neck
  M6x30	tightening torque	10 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten screw (1) on the oil filler neck (3).
