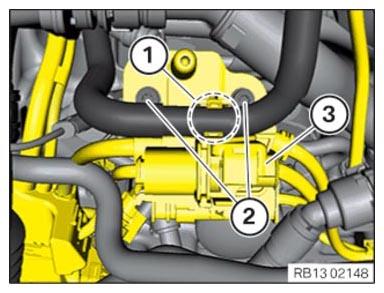

Installing holder with the wiring harness for the sensor system of cylinder bank 2

• Position the holder with the wiring harness for the sensor system.
• Tighten screws (2).

TIGHTENING TORQUE SPECIFICATION

Holder of sensor system
M6x16 screw	Tightening torque	10 Nm

• Connect plug connection (3) and lock.
• Engage the coolant ventilation line in area (1) at the holder.
