Installing fan cowl with electric motor

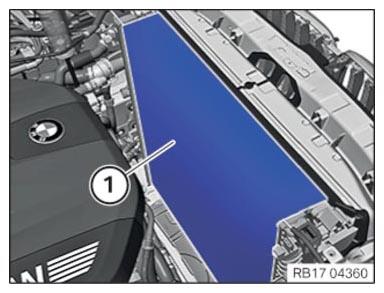

Remove guard for the cooler fins

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Courtesy of BMW OF NORTH AMERICA, INC.

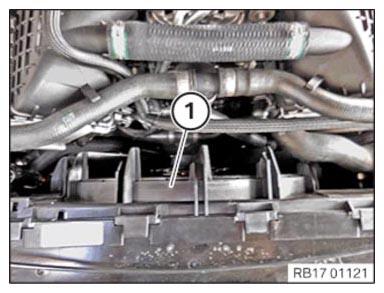

Insert the fan cowl (1) downwards to the coolant hoses.

Courtesy of BMW OF NORTH AMERICA, INC.

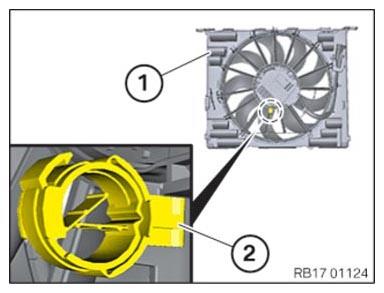

Clip in the hose support (2) to the fan cowl (1).

Courtesy of BMW OF NORTH AMERICA, INC.
F90 only:

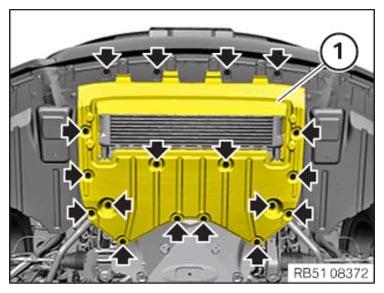

Insert the front underbody protection (1).
Slide the front underbody protection (1) slightly backwards and insert it under the thrust field (2).

Tighten all bolts (arrows).

TIGHTENING TORQUE SPECIFICATION

Underbody protection
Screw	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Only for F91, F92, F93:

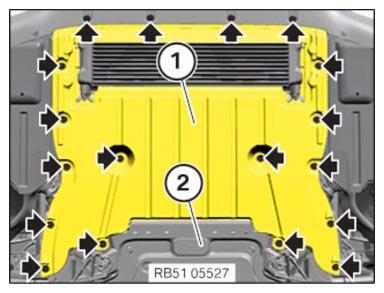

Insert the front underbody protection (1).
Slide the front underbody protection (1) slightly backwards and insert it under the thrust field (2).

Tighten all bolts (arrows).

TIGHTENING TORQUE SPECIFICATION

Underbody protection
Screw	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

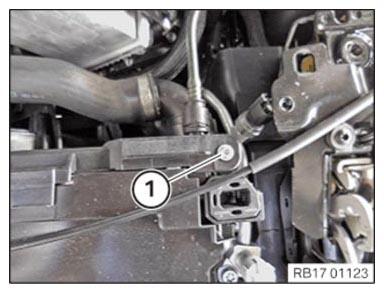

Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATION

Fan cowl with electric motor
screw	Tightening torque	2.8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

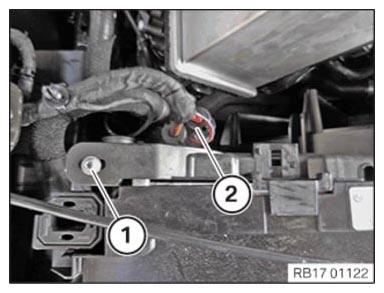

Clip in and secure wiring harness mountings (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATION

Fan cowl with electric motor
screw	Tightening torque	2.8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Remove guard for the cooler fins

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Courtesy of BMW OF NORTH AMERICA, INC.

Insert the fan cowl (1) downwards to the coolant hoses.

Courtesy of BMW OF NORTH AMERICA, INC.

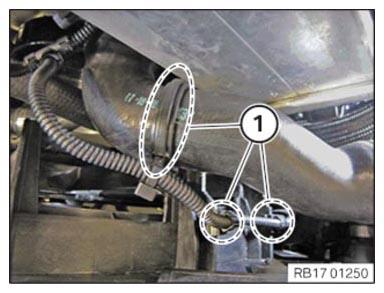

Clip in all hose supports (2) to the fan cowl (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATION

Fan cowl with electric motor
screw	Tightening torque	2.8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Clip in and secure wiring harness mountings (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATION

Fan cowl with electric motor
screw	Tightening torque	2.8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
