Installing electric coolant pump with holder

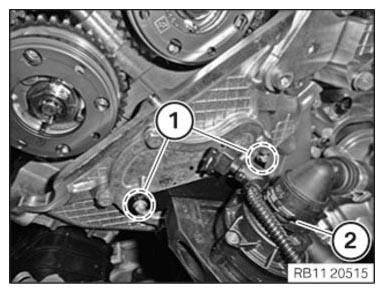

- Position the electric coolant pump with the holder (2).
- Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATION
| Holder of electric coolant pump |
| M6x16 screw |
Tightening torque |
8 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
- Position the electric coolant pump with the holder (2).
- Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATION
| Holder of electric coolant pump |
| M6x16 screw |
Tightening torque |
8 Nm |
