Installing conduit on bank 2

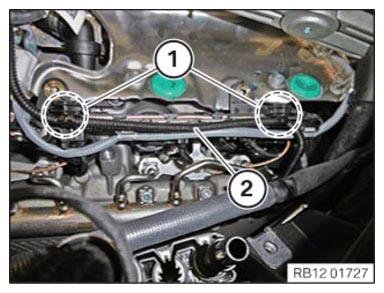

- Clip the wiring harness (2) into the clamps (1).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
- Position the wiring harness.

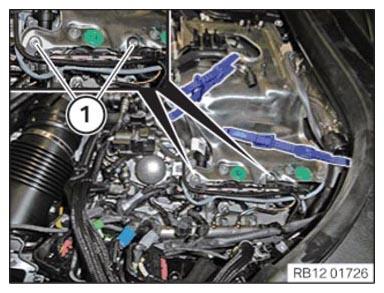

- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATION
| Cable duct |
| M6x16 screw |
Tightening torque |
10 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
