Installing clean air pipe of cylinder bank 1
Installing clean air pipe of cylinder bank 1

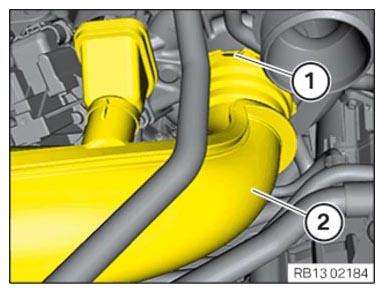

Position the clean air pipe of cylinder bank 1 (2) in direction of arrow and slide it on.
The retaining clip (1) must engage audibly.
Courtesy of BMW OF NORTH AMERICA, INC.
Position the clean air pipe of cylinder bank 1 (2) in direction of arrow and slide it on.
The retaining clip (1) must engage audibly.
Courtesy of BMW OF NORTH AMERICA, INC.
