Install the rear top cross connection

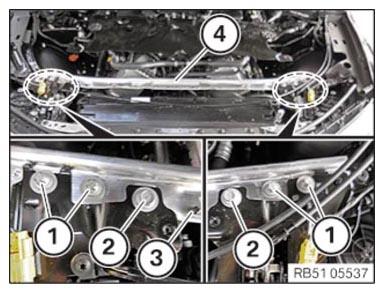

• Position the cross connection at the upper rear (4) and guide in.
• Snap the cable clip (3) into the cross connection at the upper rear (4).
• Tighten down screws (2).

TIGHTENING TORQUE SPECIFICATION

Top rear cross connection center
M8x20 screw	Tightening torque	28 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATION

Top rear cross connection at side
M8x30 screw	Tightening torque	19 Nm
