Install the rear section of the front wheel arch cover on the left and right

NOTE: Perform the steps on the right and left side.

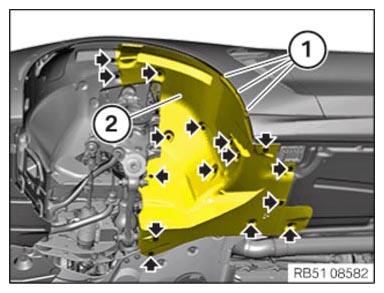

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

• Guide in rear section (2) of the front wheel arch cover.
• Tighten screws (arrows).

TIGHTENING TORQUE SPECIFICATION

Wheel arch cover (screws)
Thermoplastic hexagon screw	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

• Secure expanding rivet (1).
