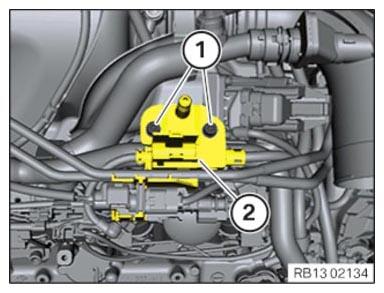

Install the holder with the vehicle wiring harness for the sensor system of cylinder bank 1

• Position the holder (2) with the wiring harness for the sensor system.
• Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATION

Holder of sensor system
M6x16 screw	Tightening torque	10 Nm
