Install tank cover on left and right
NOTE:
Description is for left component only. Procedure on the right side is identical.
NOTE:
Perform the steps on the right and left side.

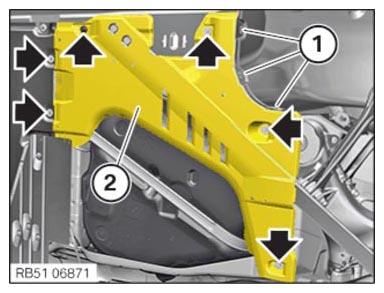

- Feed in and position the tank cover (2).
- Tighten all bolts and nuts (arrows).
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATION
| Undershield | ||
|---|---|---|
| Screw | Tightening torque | 2.6 Nm |
| Plastic nut | Tightening torque | 2.6 Nm |
