Install rear brake pad wear sensor

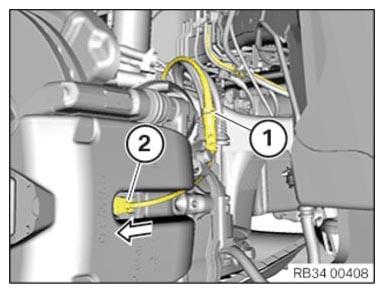

- Install the brake pad wear sensor (2) in the brake pad in the direction of the arrow.
- Ensure correct fit of brake pad wear sensor (2) in brake pad.

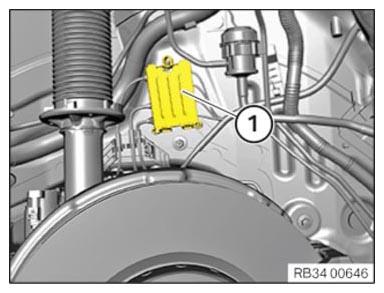

- Attach the cable of the brake pad wear sensor in the holder (1).

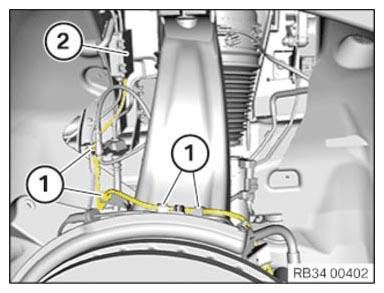

- Attach cable of brake pad wear sensor in holders (1).

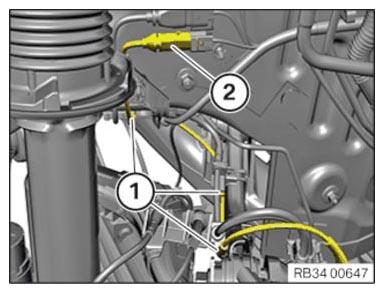

- Connect connectors (2) and lock.
TIGHTENING TORQUE SPECIFICATION
| Wheel arch cover | ||
|---|---|---|
| Thermoplastic hexagon screw | Tightening torque | 2.6 Nm |
| Plastic nut | Tightening torque | 2.6 Nm |
