Install left and right brake ventilation duct
NOTE:
Perform the steps on the right and left side.

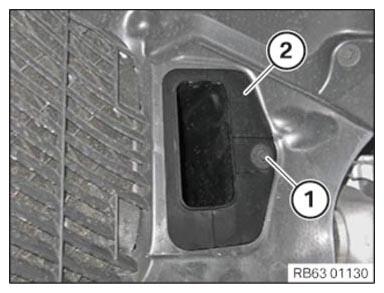

- Maneuver brake air duct (2) into the wheel arch cover.
- Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATION
| Wheel arch cover (screws) |
| Thermoplastic hexagon screw |
Tightening torque |
3 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
