Install front cross connection

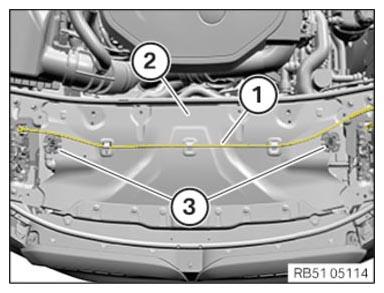

- Feed in cross connection (2) with holders (3).
- Attach the Bowden cable (1).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

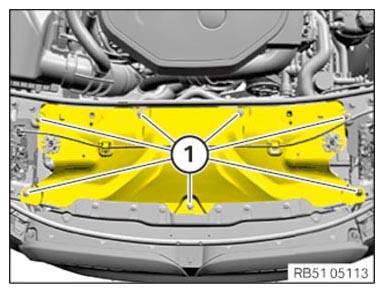

- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATION
| Front cross connection |
| Screw |
Tightening torque |
11.8 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
