Fastening the upper heat shield

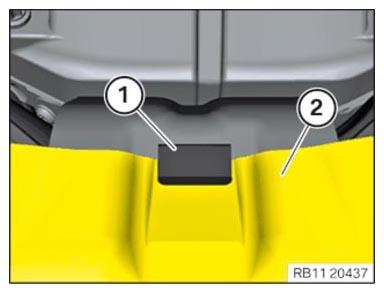

- Engage the top heat shield (2) in the clamp (1) on the cowl side.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

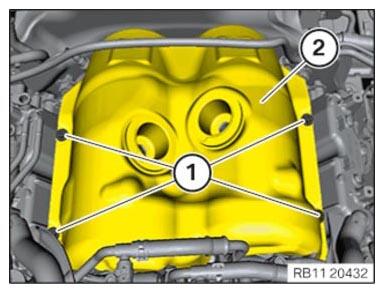

- Position the top heat shield (2).
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATION
| Heat shield, top |
| M6x16 screw |
Tightening torque |
10 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
