Disconnecting the exhaust system

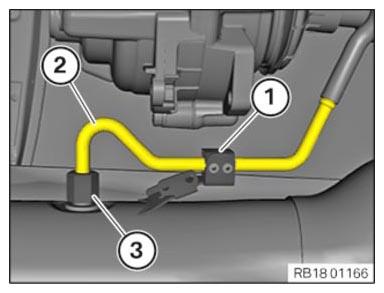

Loosen union nut (3).
Unclip the pressure line (2) from the holder (1).

Courtesy of BMW OF NORTH AMERICA, INC.

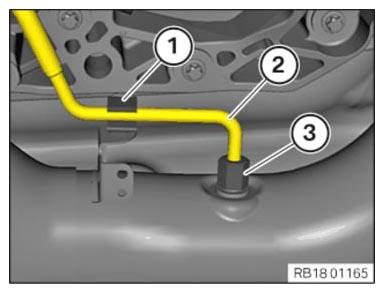

Loosen union nut (3).
Unclip the pressure line (2) from the holder (1).

G16412209

Courtesy of BMW OF NORTH AMERICA, INC.

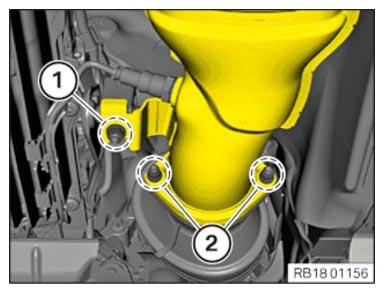

Release nut (1).
Release nuts (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Secure the exhaust system from falling down with a transmission jack.

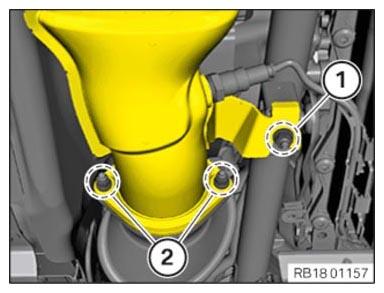

Release nut (1).
Release nuts (2).
Lower the exhaust system.
Slide the exhaust system downwards.

G16412211

Courtesy of BMW OF NORTH AMERICA, INC.
