Detaching the wiring harness of the EPS from the front axle support

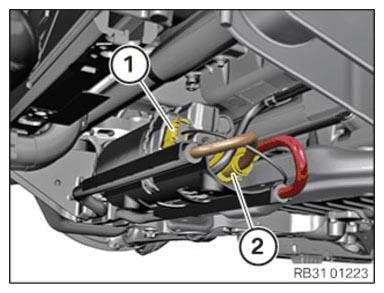

Unlock and disconnect the plug connections (1) and (2).

Courtesy of BMW OF NORTH AMERICA, INC.

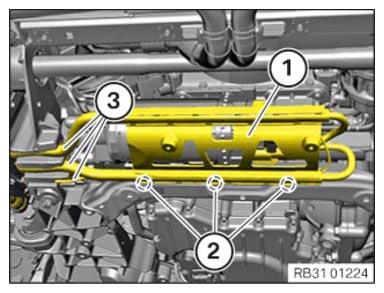

Release cable bracket (1) from front subframe in areas (2).
Loosen the wiring harness (3) from the retaining bracket.

Courtesy of BMW OF NORTH AMERICA, INC.
Release wiring harness (1) in areas (2).
Hang wiring harness (1) to one side.

G16412754

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.

Version C: Loosen wiring harness

Unlock and disconnect the plug connections (1) and (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Release cable bracket (1) in the areas (2) from the front subframe.
Loosen the wiring harness (3) from the retaining bracket.

Courtesy of BMW OF NORTH AMERICA, INC.

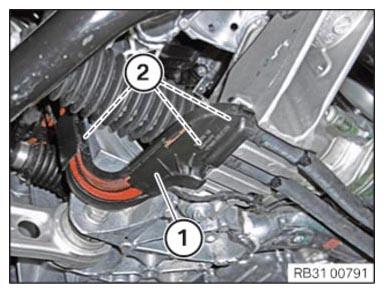

Release wiring harness (1) in areas (2).
Set wiring harness (1) aside.

G16412925

Courtesy of BMW OF NORTH AMERICA, INC.
