Detaching coolant hoses from the front axle support

NOTE: Perform the steps on the right and left side.

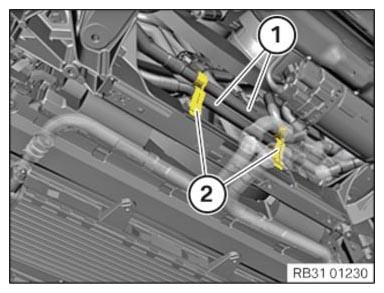

• Release the coolant hoses (1) from the holder (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: The following step(s) must be performed if the specified component(s) is/are installed.

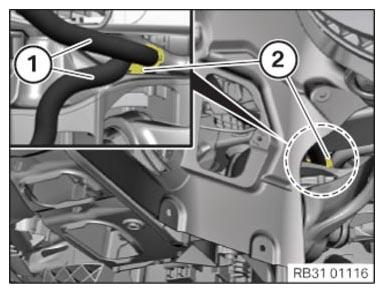

• Release the coolant hoses (1) from the holder (2) on the front subframe.

  Courtesy of BMW OF NORTH AMERICA, INC.

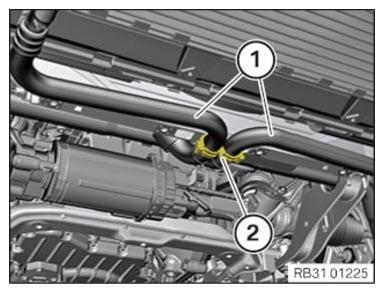

• Release the coolant hoses (1) from the holders (2).

Courtesy of BMW OF NORTH AMERICA, INC.
