Attaching the thermostat or transmission oil cooler line on the front subframe
NOTE:
TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.
Different variants may be installed depending on the vehicle equipment.
Version A: Attaching the thermostat or transmission oil cooler line on the front subframe

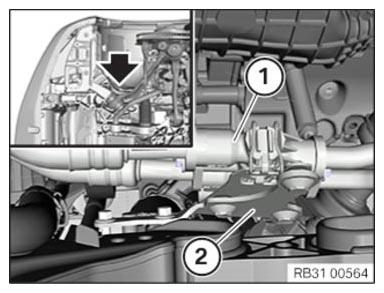

- Attach the thermostat (1) for the transmission oil cooling on the holder (2).
Version B: Attaching the thermostat or transmission oil cooler line on the front subframe

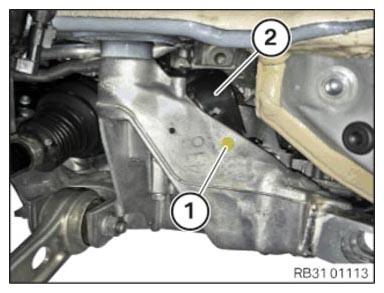

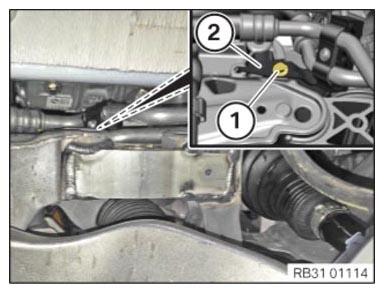

- Position holder (2) for the transmission oil cooler lines on the front subframe.
- Tighten down screw (1).TIGHTENING TORQUE SPECIFICATION
Holder for transmission oil cooler lines on front subframe M6 Tightening torque 8 Nm - Position holder (2) for the transmission oil cooler lines on the front subframe.
- Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATION
| Holder for transmission oil cooler lines on front subframe | ||
|---|---|---|
| M6 | Tightening torque | 8 Nm |
