Attaching the cable of the wheel RPM sensor on the left and right

NOTE: Perform the steps on the right and left side.

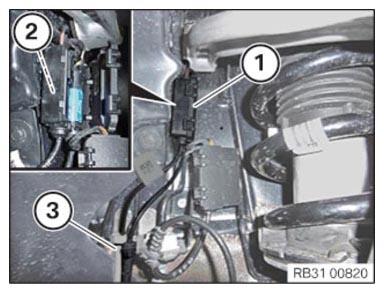

• Secure cable of wheel speed sensor to holder (3).
• Attach the connectors of the wheel speed sensor (2) and lock.
• Close sealing cap (1).

Courtesy of BMW OF NORTH AMERICA, INC.
