Attaching the brake caliper on the left and right
NOTE:
Perform the steps on the right and left side.
Securing the brake caliper

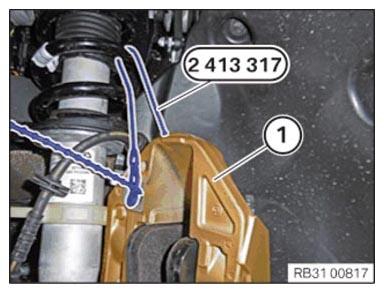

- Release the special tool 2 413 317 from the brake caliper (1) and remove.
- Position the brake caliper and slide onto the stud bolts.

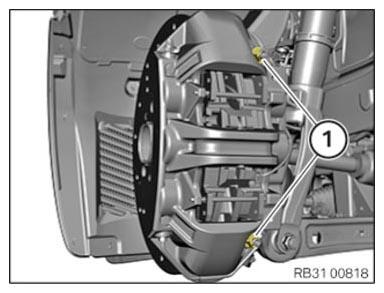

- Replace the nuts (1).
Parts: Nuts
- Tighten the nuts (1).
TIGHTENING TORQUE SPECIFICATION
| Brake caliper on stud bolt of the front swivel bearing | ||
|---|---|---|
| M12 Replace nuts. |
Tightening torque | 95 Nm |

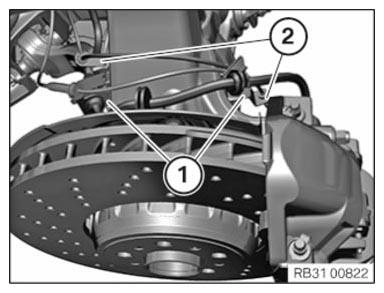

- Secure the brake hose on the holders (1).
NOTE:
Only perform the operation on the left side.
- Attach the cable for the brake pad wear sensor to the holders (2).
