Attaching the Lambda oxygen sensor for the cylinders 5 to 8

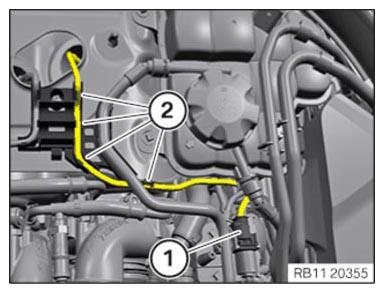

• Feed the cable (1) of Lambda oxygen sensor through the holder of coolant expansion tank.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Engage cable into the latch mechanisms (2).

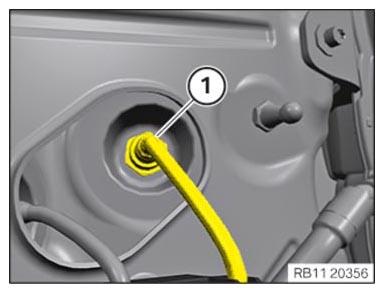

• Attach the connector (1) and engage in the holder.

Courtesy of BMW OF NORTH AMERICA, INC.
